Used by customers around the world over many years, 2way solenoid valve works with high viscosity oil(A B C Heavy Oil , Light Oil , Kerosen).
| Fluid | oil(A B C Heavy Oil , Light Oil , Kerosen) |
|---|---|
| Temperature | MAX 100,120℃ |
| Pressure | MAX 2.1MPa |
| Size | 8,10A |
| PowerSource | 100,110,120,200,220,240 volts AC (50/60Hz) , DC |
| Operation | Normally Close, Normally Open |
| Model No | Connection | OrificeΦ (mm) |
Pressure (MPa) |
CvValue | Weight(kg) | ||
|---|---|---|---|---|---|---|---|
| Size | Port | Type | |||||
| ZFD-1032-8AUK | 1/4 | 2WAY | Rc | 3.0 | 0~2.1 | 0.26 | 0.65 |
| ZFD-1032-10AUK | 3/8 | ||||||
| ZFD-1532-8AUK | 1/4 | 0.7 | |||||
| ZFD-1532-10AUK | 3/8 | ||||||
| ZFD-1032-8AUKC | 1/4 | 0.65 | |||||
| ZFD-1032-10AUKC | 3/8 | ||||||
| ZFD-1532-8AUKC | 1/4 | 0.7 | |||||
| ZFD-1532-10AUKC | 3/8 | ||||||
| Normally Close | ||
|---|---|---|

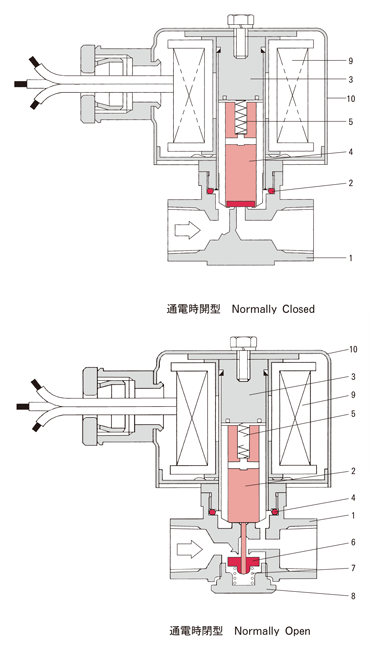

| No | Name of part | Material |
| 1 | Body | C3771 |
| 2 | Plunger | SUS410＋FKM |
| 3 | Packless Ass’y | SUS410+SUS304 |
| 4 | Packless Packing | FKM |
| 5 | Plunger Spring | SUS304 |
| 9 | Coil | PEW |
| 10 | Coil Bonnet | SPC+Coating |

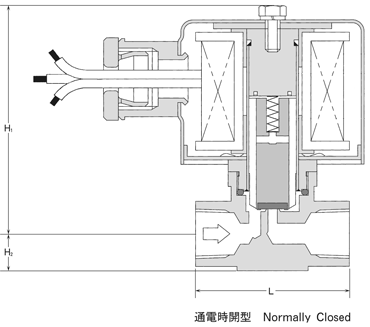

| Model No | Dimensions (mm) | ||
|---|---|---|---|
| L | H1 | H2 | |
| ZFD-1032-8AUK | 52 | 73 | 13 |
| ZFD-1032-10AUK | |||
| ZFD-1532-8AUK | 78 | ||
| ZFD-1532-10AUK | |||
| ZFD-1032-8AUKC | 73 | 16 | |
| ZFD-1032-10AUKC | |||
| ZFD-1532-8AUKC | 78 | 17 | |
| ZFD-1532-10AUKC | |||
| Installation | A Coil Vertical plus minus at an angle of 90 degree |
|---|---|
| Ambient Temp. | 0-50C |
| Humidity | RH90％ or less |
| Fluid Viscosity | 150mm2/s(150cst) |
| Option | Drip-proof Type, Terminal box |
