LNG Solenoid valve of linear motion type (solenoid valve) which can be used up to -196 ℃ with low temperature fluid such as liquid nitrogen and antifreeze. Can be used up to 1.6 MPa medium pressure. It is used in various equipment such as refrigeration equipment and medical equipment.
| Fluid | Liquid nitrogen, Antifreeze |
|---|---|
| Temperature | -196℃ |
| Pressure | 1.6MPa |
| Size | 1/2″ |
| PowerSource | 100,200 volts AC (50/60Hz) |
| Operation | Normally Close |
| Origin | Japan |
※20A (3/4 “) is being prepared for sale.
| Model No | Connection | Port | Orifice φ[mm] |
Pressure (Fluid) |
CV Value |
Weight (kg) |
|
|---|---|---|---|---|---|---|---|
| Size | Type | ||||||
| ME6-SSP-15LN2HM | 1/2 | Rc | 2WAY | 13.8 | 0〜1.6MPa | 3 | 4.1 |

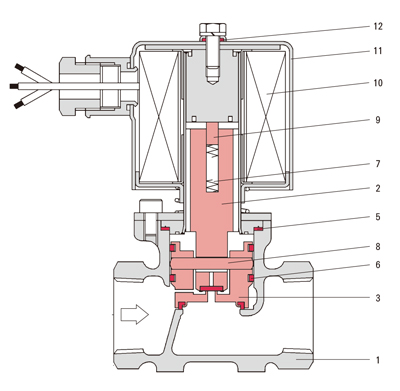

| No | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | SCS13 |
| 2 | Plunger | SUS410＋PTFE |
| 3 | Main valve Ass’y | SUS304＋PTFE |
| 4 | Packless Ass’y | SUS410＋SUS304 |
| 5 | Packless Packing | PTFE |
| 6 | Seal Ring | XE-4 (Tonimetal) |
| 7 | Plunger Spring | SUS304 |
| 8 | Pin | SUS420 |
| 9 | Push Rod | SUS304 |
| 10 | Coil | PEW |
| 11 | Coil Bonnet | SPC＋Coating |
| 12 | Drip Proof Parts | SUS304＋NBR |

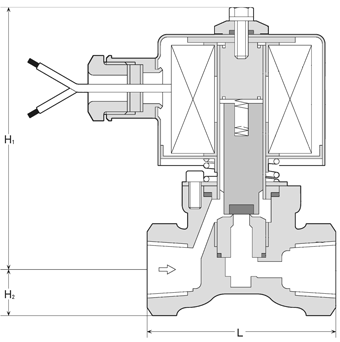

| Model No | Size [inch] |
Dimension | ||
|---|---|---|---|---|
| L1 | L2 | H1 | ||
| ME6-SSP-15LN2HM | 1/2 | 63 | 125 | 18 |
