Emergency shut off motorized Ball ValveKB1-WAG series
Valve Specification
| Model No |
Connection |
Pressure Range[MPa] |
Cv Value |
Open/Close Time (second)* |
| Size |
Port |
Type |
Operating Pressure |
Close off Rating |
| KB1-SSP-AS15WAGMJ |
1/2 |
2WAY |
Rc |
1.0MPa |
1.0MPa |
18 |
2.5 / 1 |
| KB1-SSP-AS20WAGMJ |
3/4 |
27 |
| KB1-SSP-AS25WAGMJ |
1 |
43 |
| KB1-SSP-AH40WAGMJ |
1 1/2 |
132 |
| KB1-SSF-AS15WAGDMJ |
1/2 |
JIS10K RF |
18 |
| KB1-SSF-AS20WAGDMJ |
3/4 |
27 |
| KB1-SSF-AS25WAGDMJ |
1 |
43 |
| KB1-SSF-ASR32WAGMJ |
1 1/4 |
JIS10K FF |
39 |
| KB1-SSF-AH40WAGDMJ |
1 1/2 |
JIS10K RF |
132 |
| KB1-SSF-AHR50WAGMJ |
2 |
JIS10K FF |
96 |
| KB1-SSF-AHR65WAGMJ |
2 1/2 |
87 |
*The description is an approximate value.

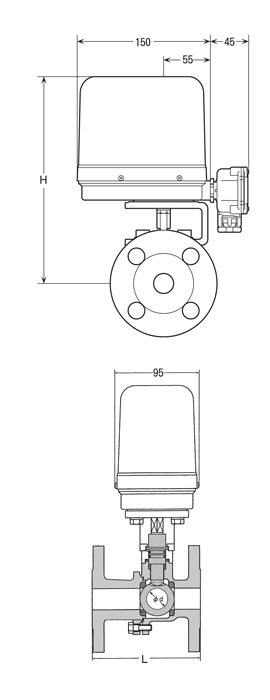

Dimensions
| Model No (Size) |
Dimension (mm) |
| φd |
L |
H |
| KB1-SSP-AS15WAGMJ (1/2) |
15.0φ |
65.0 |
240.0 |
| KB1-SSP-AS20WAGMJ (3/4) |
20.0φ |
80.0 |
245.0 |
| KB1-SSP-AS25WAGMJ (1) |
25.0φ |
90.0 |
255.0 |
| KB1-SSP-AH40WAGMJ (1 1/2) |
40.0φ |
120.0 |
265.0 |
| KB1-SSF-AS15WAGDMJ (1/2) |
15.0φ |
108.0 |
255.0 |
| KB1-SSF-AS20WAGDMJ (3/4) |
20.0φ |
117.0 |
260.0 |
| KB1-SSF-AS25WAGDMJ (1) |
25.0φ |
127.0 |
265.0 |
| KB1-SSF-ASR32WAGMJ (1 1/4) |
25.0φ |
160.0 |
255.0 |
| KB1-SSF-AH40WAGDMJ (1 1/2) |
40.0φ |
165.0 |
275.0 |
| KB1-SSF-AHR50WAGMJ (2) |
40.0φ |
188.0 |
265.0 |
| KB1-SSF-AHR65WAGMJ (2 1/2) |
40.0φ |
208.0 |
265.0 |
