Rubber Type Constant Flow ValvesRSP series
Valve Specification
| Model |
Connection |
Control Pressure Difference［MPa］ |
Flow［L/min］ |
MAX Pressure［MPa］ |
Weight ［kg］ |
| Size |
Type |
| RSP-12 |
3/8 |
Rc |
0.05-0.7 |
0.6 0.8 1.2 1.5 1.8 2.2 2.5 2.6
3.0 3.5 4.0 5.0 5.5 8.5 9.0
|
0.7 |
0.15 |
| RSP-15 |
1/2 |
0.2 |
Main Parts List
| No |
Name of Parts |
Materials |
| 1 |
Body |
C3604 |
| 2 |
Flow Washer |
NBR or NR |
| 3 |
Stop Ring |
SUS304 |

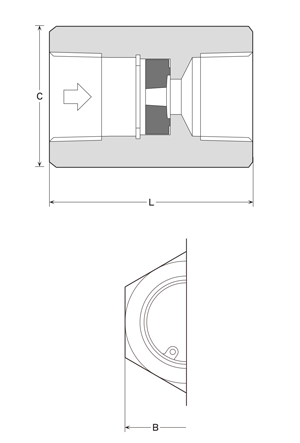

Dimensions
| Model |
Size |
Dimension ［mm］ |
| L |
C |
| RSP-12 |
3/8 |
50 |
26.6 |
| RSP-15 |
1/2 |
55 |
30 |
Other Specifications・Options
| Option |
Body Materials SUS304 |
＊Precaution Statement
1. Set same size of straight run of pipe with constant flow valve in back and forth of it.
Primary side →over Size ×5 mm Secondary side → over Size × 10 mm
2.Vibration and noise may occur by usage situation, piping configuration and pump characteristics.
