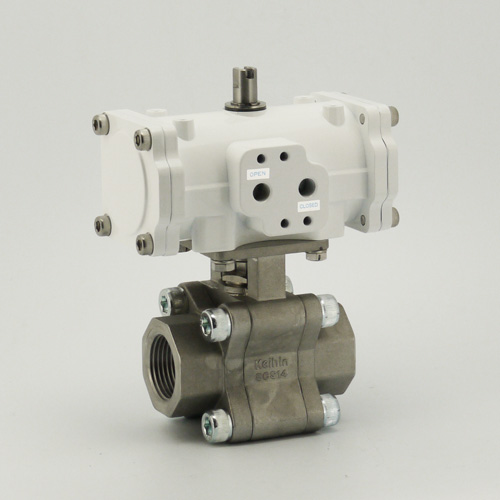

| Fluid | Water・Oil・Air・Gas |
|---|---|
| Temperature | -15C to +80C (Option: 0C to 120C) |
| Pressure | MDA:1.0MPa 1DA:3.0MPa 2DA:2.5MPa |
| Operating Pressure | 0.4-0.7MPa |
| Size | 8-50A |
| Operation | Air in Open Air in Close |
| Mounting | NAMUR standard (VDI/VDE3845) *1 |
*1 :TX2-□DA series conforms to NAMUR standard(VDI/VDE3845). TX350-MDA series don’t conform.
*2 :This valve is also available as a customized, 10 MPa high-pressure version. It depends on the condition of actual use. If you need, please contact sales section.
| Model No | Connection | Pressure Range[MPa] | Air Inlet | CV Value | Weight [kg] |
||
|---|---|---|---|---|---|---|---|
| Size | Port | Type | |||||
| TX350-MDA+SKL-8 | 1/4 | 2WAY | Rc | 0~1 | Rc1/8 | 4.8 | 1.4 |
| TX350-MDA+SKL-10 | 3/8 | 6.0 | 1.4 | ||||
| TX350-MDA+SKL-15 | 1/2 | 8.0 | 1.4 | ||||
| TX350-MDA+SKL-20 | 3/4 | 12.0 | 1.7 | ||||
| TX2-1DA＋SKL-8 | 1/4 | 0~3 | Rc1/8 | 4.8 | 1.7 | ||
| TX2-1DA＋SKL-10 | 3/8 | 6.0 | 1.7 | ||||
| TX2-1DA＋SKL-15 | 1/2 | 8.0 | 1.7 | ||||
| TX2-1DA＋SKL-20 | 3/4 | 12.0 | 2.0 | ||||
| TX2-1DA＋SKL-25 | 1 | 29.0 | 2.8 | ||||
| TX2-2DA＋SKL-32 | 1 1/4 | 0~2.5 | Rc1/8 | 50.0 | 5.7 | ||
| TX2-2DA＋SKL-40 | 1 1/2 | 60.0 | 5.7 | ||||
| TX2-2DA＋SKL-50 | 2 | 110.0 | 7.7 | ||||
TX350-MDA+SKL-**
| Model No (Size) | Dimention [mm] | ||
|---|---|---|---|
| φd | L | H1 | |
| TX350-MDA+SKL-8 (1/4) | 11 | 65 | 104.5 |
| TX350-MDA+SKL-10 (3/8) | |||
| TX350-MDA+SKL-15 (1/2) | |||
| TX350-MDA+SKL-20 (3/4) | 14 | 71 | 112.5 |
TX2-１DA+SKL-**
| Model No (Size) | Dimention [mm] | ||
|---|---|---|---|
| φd | L | H1 | |
| TX2-1DA＋SKL-8 (1/4) | 11 | 65 | 121.3 |
| TX2-1DA＋SKL-10 (3/80 | |||
| TX2-1DA＋SKL-15 (1/2) | |||
| TX2-1DA＋SKL-20 (3/4) | 14 | 71 | 129 |
| TX2-1DA＋SKL-25 (1) | 19 | 93.5 | 143 |
TX2-2DA+SKL-**
| Model No (Size) | Dimention [mm] | ||
|---|---|---|---|
| φd | L | H1 | |
| TX2-2DA＋SKL-32 (1 1/4) | 29 | 107 | 186 |
| TX2-2DA＋SKL-40 (1 1/2) | 116 | ||
| TX2-2DA＋SKL-50 (1) | 38 | 126 | 200 |
| Installation | A Coil Vertical plus minus at an angle of 90 degree |
|---|---|
| Ambient Temp. | 0-50℃ |
| Option | Solenoid valve(AC100,200V, DC24V), Speed controller, limit switch, High temperature, |
This valve can also be provided with a solenoid valve, speed controller and high-temperature specifications as an option.
*1 :TX2-□DA series conforms to NAMUR standard(VDI/VDE3845).
TX350-MDA series don’t conform
